Details

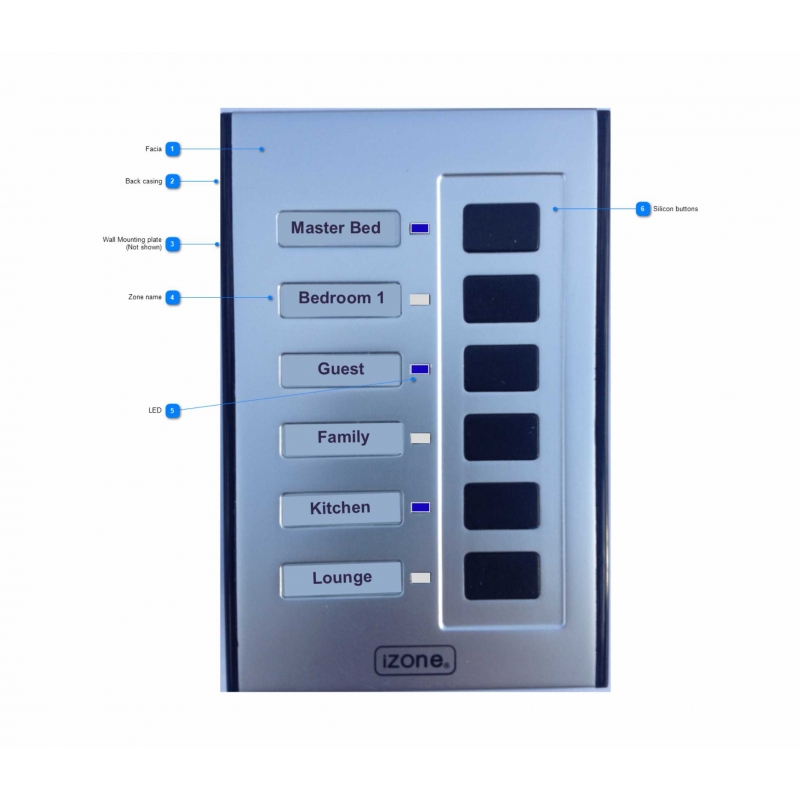

The C110WC is the user interface controller for the C110K system.
- Facia: The facia is moulded from ABS plastic and painted silver
- Back casing: The back casing is moulded from ABS plastic and painted black
- Wall Mounting plate (Not shown): The wall mounting plate is moulded from black ABS plastic. It can be fixed to the wall using the appropriate plugs and counter sunk screws. The Wall mounting plate will also fit onto a standard electrical wall box
- Zone name: A pre-printed sticky labels are supplied with the C110WC. These should be peeled off and carefully stuck into the label recess.
- LED: The LED will illuminate blue we a zone is open and will turn off when the associated zone is closed
- Silicon buttons: Press the associated zone button to open or close a zone
|
Wall Controller Specification |
|
|
Model numbers |
C110WC |
|
Power supply |
From C110MC module |
|
Power and communication connection |
RJ 45 |
|
Communications protocol |
RS 485 |
|
Operating Temperature |
Room temperature |
|
Number of zones |
1 to 6 |
|
O/A Dimensions |
Height 21 mm (Excludes RJ45 connector) Width 81 mm Length 122 mm |
|
Weight |
108 g |
