iZone 155 Naked Kit Mitsubishi Heavy

Availability: In stock

$443.91

Quick Overview

NAKED - 6 ZONE + MITSUBSHI HEAVY + WIRELESS CONTROLLER + WIFI KIT
OR

Details

iZone Naked 155 Integrated AC unit & Zone control

iZone gives you total temperature control of each room or zone individually. iZone can operate up to 14 zones on any one system and every room or zone can be at the temperature you want, all the time.

By providing cooling and heating only when and where you need it, iZone climate control systems maximise energy efficiency while reducing running costs.

iZone climate control systems are fully scalable, which means you can afford it on almost any budget.

With iZone naked there is no need for a wall-mounted controller as you to use your smartphone or tablet to control your system.

iZone 155 is a low cost integrated AC control system which is suitable for controlling zones and complete AC unit control as well as full smart home control via a phone or tablet.



A summary of the features iZone 155 offers are listed below:

  • Up to 6 zones available

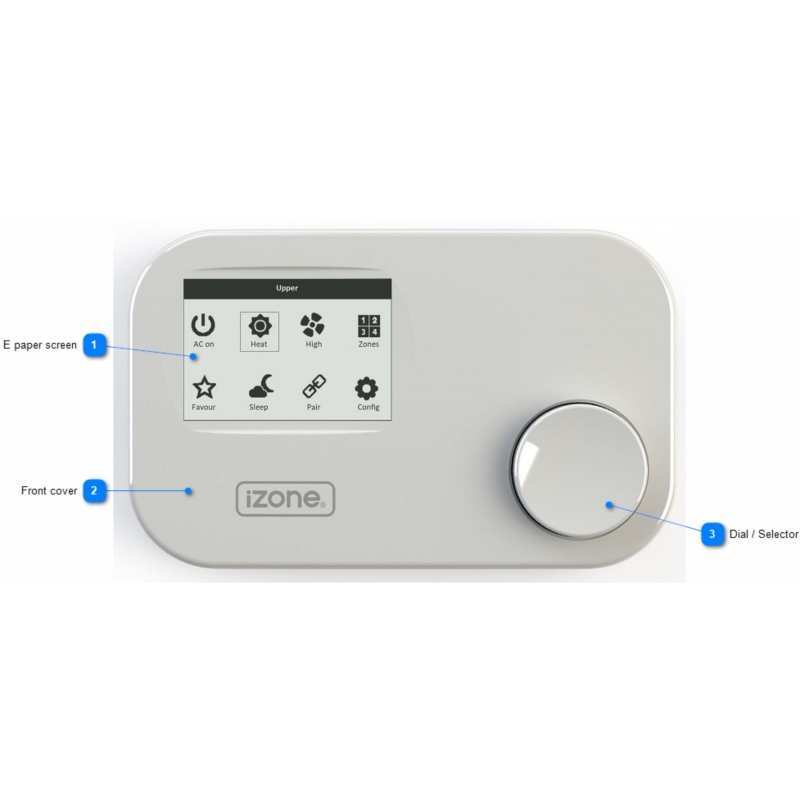

  • Zones air quantities can be balanced from the CEPC controller (no need for separate manual balancing dampers)
  • Zone airflows can be adjusted by the end user from the CEPC controller
  • Multiple CEPC controllers can be added
  • Zone temperatures can be controlled from CEPC if iZone sensors are fitted to the system
  • Label zone names from a standard library of names built into the controller
  • Electronic constants can be setup.
  • Numerous brands of AC unit can be controlled. Click on the link to which AC units are compatible and how to wire them.



Because the iZone 155 is supplied with an iZone Bridge other iZone automation products such as lighting, irrigation, garage door control, roller blinds etc can be controlled.



General installation instructions

  1. The C150 can be installed on top of the indoor fan coil unit.
  2. Do not run the blue network cables alongside 240 Volt wiring.

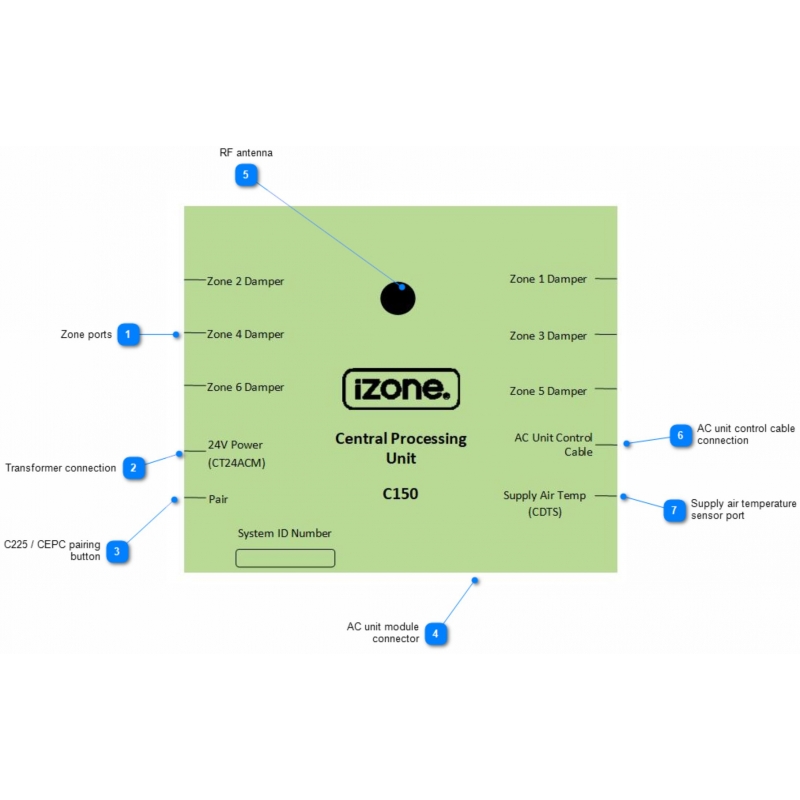

  3. Always install zones in consecutive ports starting at Zone 1. The front of the C150 is marked with the zone port numbers.
  4. Do not directly hard wire the CT24ACM into the AC unit’s power supply. This may void the warranty as it will require an electrician in the event that repair of the iZone 150 system is required.

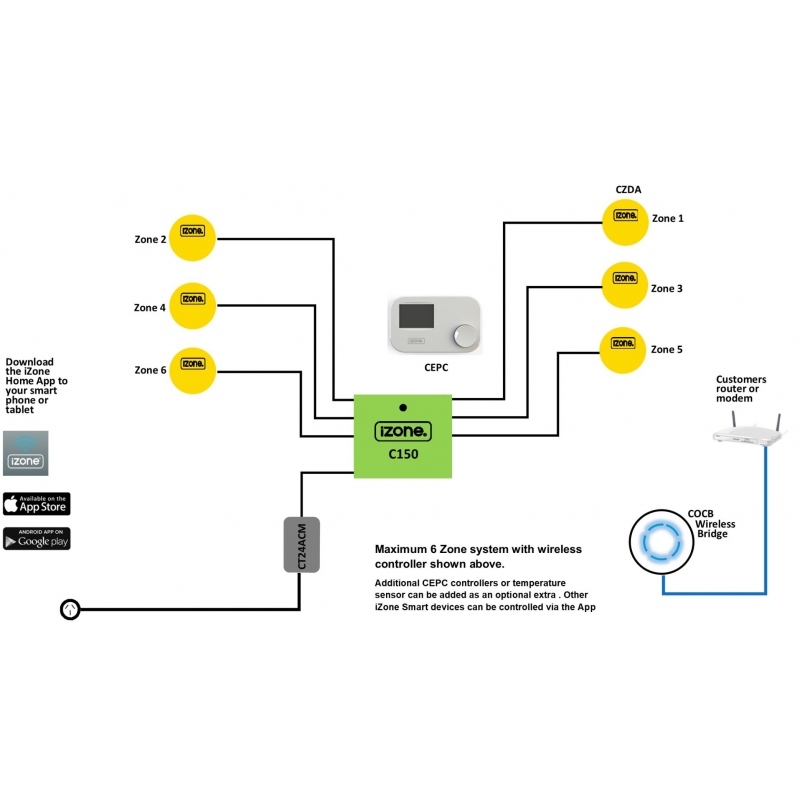

  5. Connect Zone Damper Actuators (CZDA) to the zone ports using the RJ12 cables as shown.
  6. Connect the AC unit control cable to the C150 as per the instructions for your brand of AC unit found here

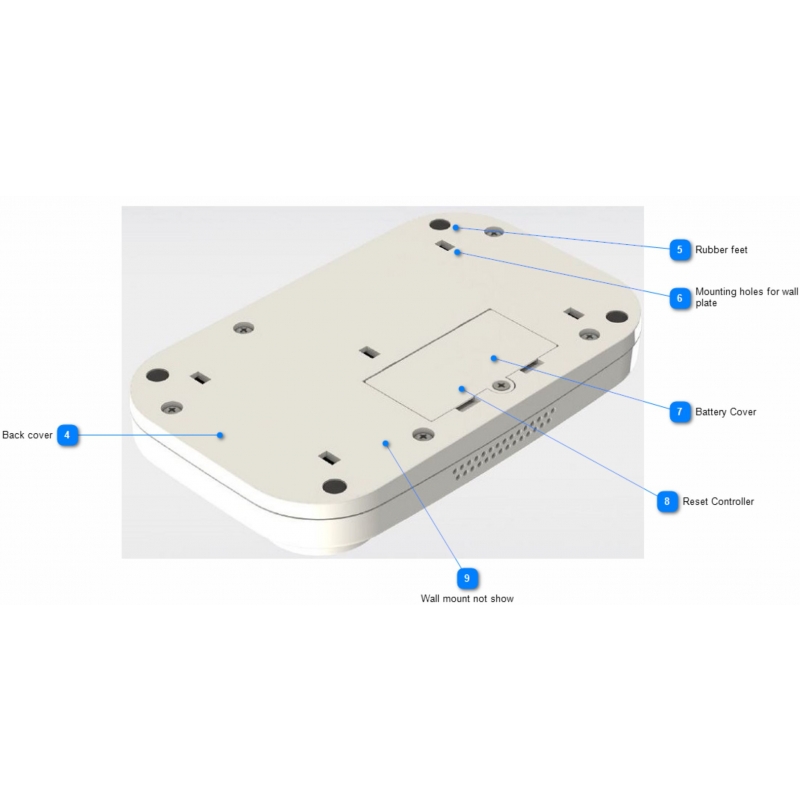

  7. Remove the tabs on the CEPC batteries to activate power to the controller
  8. Only connect the power supply to the CT24ACM port after all components have been connected.
  9. Initialise the system.
  10. Configure the system.

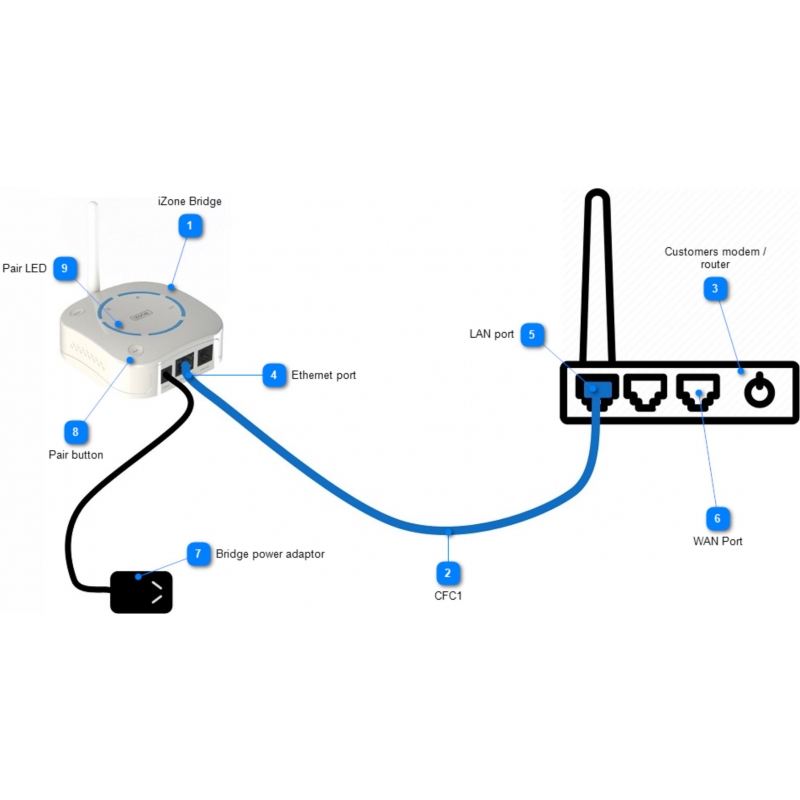

  11. Connect the bridge to the owner’s modem and connect the bridge power supply. Pair the bridge to the C155 using the pair button on the CEPC screen.



System initialisation

  • All new or modified systems must be initialised prior to system configuration.
  • To initialise the system, remove the power from the C150 module, wait 15 seconds and restore power to the C150 module.
  • The time to initialise the system will vary depending on the number of motors connected.
  • The system will also initialise when power is restored after a power failure.



Specifications

Smartphone, Tablet

  • You will need a smartphone or tablet. The following platforms are supported: Apple & Android.

System Requirements

iOS SOFTWARE REQUIREMENTS

  • Compatible with iPhone, iPod touch, and iPad. iOS 6.0 and higher.

ANDROID SOFTWARE REQUIREMENTS

  • Requires Android: 2.1 and higher.

WiFi modem or network switch

  • You will also need a compatible WiFi modem or network switch with a spare RJ 45 access port. Some WiFi modems, firewalls and security settings are not compatible with the iZone bridge and will need to be changed or replaced to enable the iZone app to run.

Download the iZone App

  • You will need an account with the manufacturer of your phone to enable you to download Apps from their respective store.
  • Apple—Apple App Store
  • Android—Google Play Store
  • Login to the respective store.
  • To search for the iZone App type “iZone Controller” into  the store’s search menu.
  • Select iZone Controller and download the iZone App.





Additional Information

Item Height No
Item Width No
Item Length No
Item Weight No
