iZone 400 Naked Zone Fob

iZone gives you total temperature control of each room or zone individually. iZone can operate up to 14 zones on any one system and every room or zone can be at the temperature you want, all the time.

By providing cooling and heating only when and where you need it, iZone climate control systems maximise energy efficiency while reducing running costs.

iZone climate control systems are fully scalable, which means you can afford it on almost any budget.

With iZone naked there is no need for a wall-mounted controller as you to use your smartphone or tablet to control your system

Specifications:

• Supports Apple and Android smartphones and tablets. Compatible with iOS 6.0, Android: 2.1 and higher
• WiFi modem or network switch with a spare RJ 45 access port
• Some WiFi modems, firewalls and security settings are not compatible with the iZone bridge and will need to be changed or replaced to enable the iZone app to run.
• “iZone Controller” app is available on Apple App Store and Google Play Store.

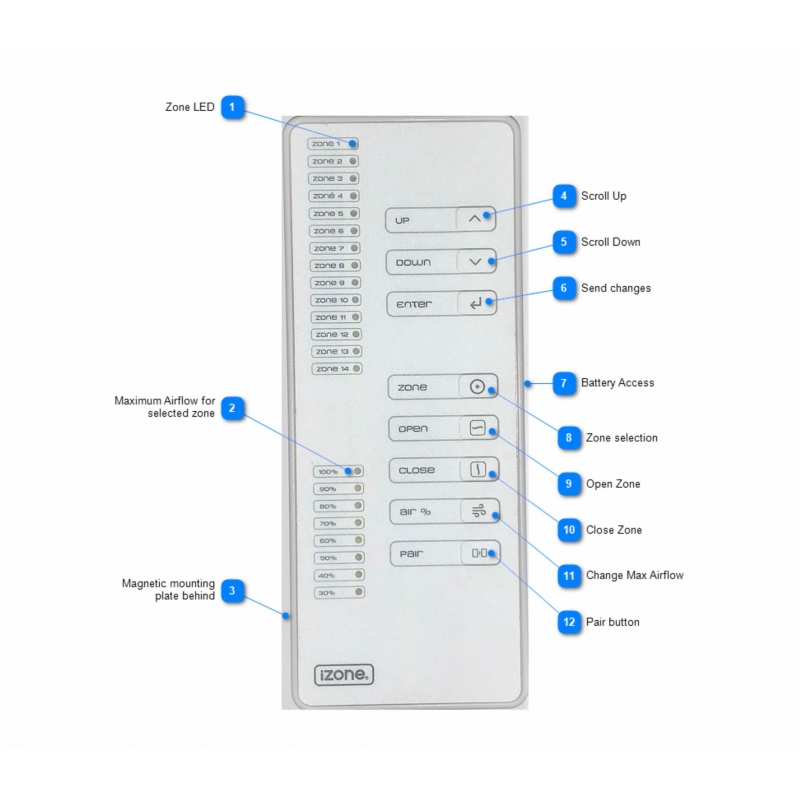

The C400FOB is a technician's wireless remote controller for zone only systems. Used when installing iZone 400 and 405 systems

1. Zone LED: The zone LED will be red if the zone is closed, The zone LED will be blue  if the zone is open
2. Maximum Airflow for selected zone: When adjusting the Max air flow for a zone the setting will be indicated by a green LED here. If two LEDs are illuminated for example 100% and 90% this indicates that the setting is between the two - 95%
3. Magnetic mounting plate behind: A magnetic mounting plates is supplied with the C400FOB. It can be adhered to a surface and the controller can be magnetically mounted onto the plate.
4. Scroll Up: Use this button to scroll up zones or airflow %
5. Scroll Down: Use this button to scroll down zones or airflow %
6. Send changes: The changes made will send automatically after a short period of time or to send changes immediately press the enter button
7. Battery Access: There is a slide in the side of to remove the batteries
8. Zone selection: Press here to access the zone you want to change
9. Open Zone: Press here to open the selected zone
10. Close Zone: Press here to close the selected zone
11. Change Max Airflow: Press here to access the airflow adjustment for the selected zone
12. Pair button: Press here to pair the C400FOB to the C225
