iZone gives you total temperature control of each room or zone individually. iZone can operate up to 14 zones on any one system and every room or zone can be at the temperature you want, all the time.
By providing cooling and heating only when and where you need it, iZone climate control systems maximise energy efficiency while reducing running costs.
iZone climate control systems are fully scalable, which means you can afford it on almost any budget.
With iZone naked there is no need for a wall-mounted controller as you to use your smartphone or tablet to control your system
Specifications:
- Supports Apple and Android smartphones and tablets. Compatible with iOS 6.0, Android: 2.1 and higher
- WiFi modem or network switch with a spare RJ 45 access port
- Some WiFi modems, firewalls and security settings are not compatible with the iZone bridge and will need to be changed or replaced to enable the iZone app to run.
- “iZone Controller” app is available on Apple App Store and Google Play Store.

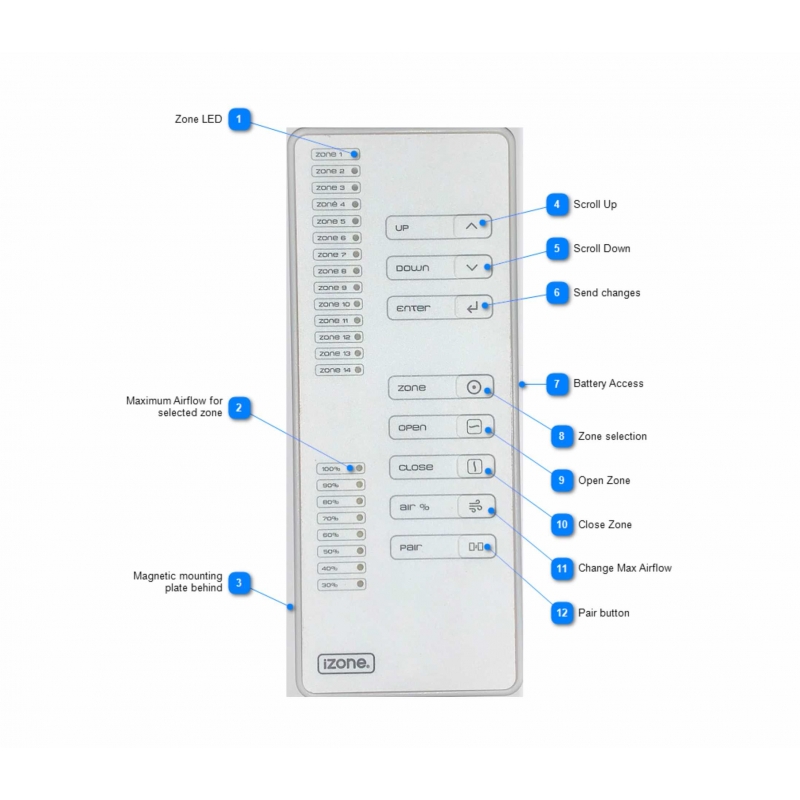

The C410FOB is a technician's wireless remote controller for integrated AC unit and zone systems. Used when installing iZone 410 and 415 systems
- Zone LED: The zone LED will be red if the zone is closed, The zone LED will be blue if the zone is open
- Fan Speed indication: LED will highlight what the current fan speed is.
- Maximum Airflow for selected zone: When adjusting the Max air flow for a zone the setting will be indicated by a green LED here. If two LEDs are illuminated for example 100% and 90% this indicates that the setting is between the two - 95%
- Zone SP Temp: LED will indicate what the current zone set point temperature is (Left hand scale). If two LEDs are illuminated for example 20 and 22 deg this indicates that the setting is between the two - 21 deg
- Magnetic mounting plate behind: A magnetic mounting plates is supplied with the C400FOB. It can be adhered to a surface and the controller can be magnetically mounted onto the plate.
- System On/Off: Press here to turn the system on. If system is ON all zone LEDs will flash green. If system is OFF all zone LEDs will flash red
- Change AC Mode: Press here to change the system mode
- Change Fan speed: Press here to change the system fan speed
- Scroll up: Use this button to scroll up
- Scroll down: Use this button to scroll down
- Send changes: The changes made will send automatically after a short period of time or to send changes immediately press the enter button
- Zone selection: Press here to access the zone you want to change.
- Battery access: There is a slide in the side of to remove the batteries
- Change to Climate control
- Open zone fully: Press here to open the selected zone
- Close zone fully: Press here to close the selected zone
- Change Max Airflow: Press here to access the airflow adjustment for the selected zone
- Pair button: Press here to pair the C400FOB to the C225
- Current mode: LED will highlight what the current mode is.
Integrated Zone and AC unit wireless remote controller |
|
Model numbers |
C410FOB |
Power supply |
2 x CR2020 coin batteries |
Communications protocol |
433 MHz, iZone proprietary wireless protocol |
Operating Temperature |
Room temperature |
C400FOB dimensions |
Height 8.5 mm (Excludes wall bracket) Width 56 mm Length 139 mm |
Wall bracket Dimensions |
Height 3.6 mm Width 52 mm Length 135 mm |
Weight |
84 g (Includes wall bracket) |
