iZone 8 Zone CPU Module

Availability: In stock

$225.57

Quick Overview

C225
OR

Details

 The C225 module provides the main processor and communication for zone control and integrated iZone control.

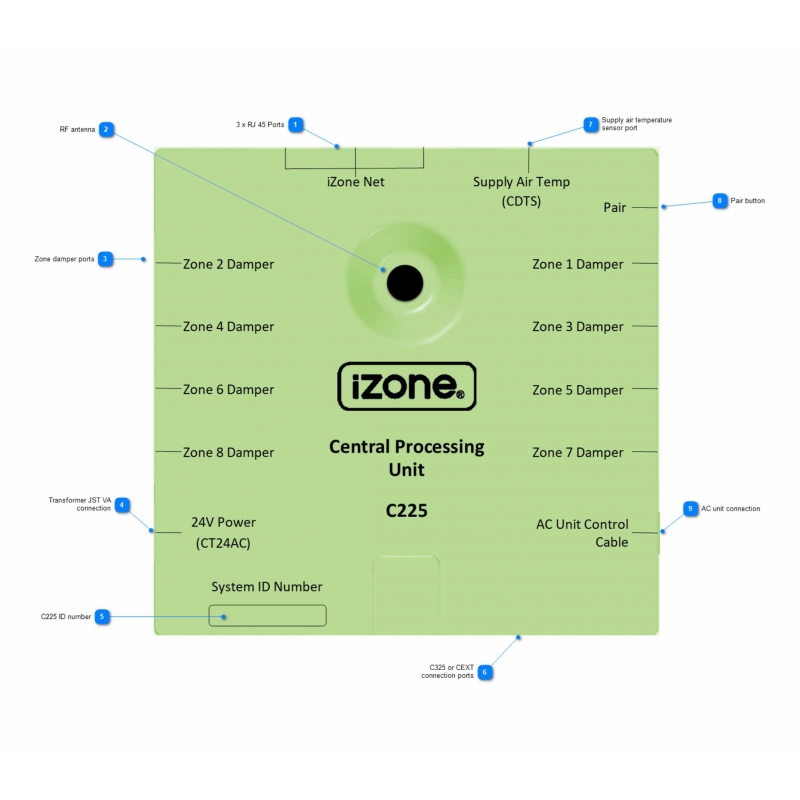

  1. 3 x RJ 45 Ports: These RJ45 ports are used for connecting the CAT 5E cables from the touch screens or the multiplexer.
  2. RF antenna: 433Mhz antenna is screwed on here. This is used for communication with wireless sensors CRFS and WiFi bridges COCB and CL5BK
  3. Zone damper ports: Connect the RJ12 (RJ11 on older systems) cables from the damper motors here. Start at zone 1 and connect sequential ports. ie 1,2,3,4.......etc
  4. Transformer JST VA connection: Connect the iZone transformer here. Part number CT24ACE
  5. C225 ID number: This is the unique ID number for the C225. When paired to the bridge the bridge will adopt this number automatically and it will then be the system ID.
  6. C325 or CEXT connection ports: When used for integrated AC / Zone control an AC module is connected to the C225. This module is a C325. Each different brand of AC unit has its own unique C325 module. CEXT modules can also be connected here to extend the number of zone ports. To view assembled product please click on this link.
  7. Supply air temperature sensor port: The supply air sensor is plugged into the C225 here. The supply air sensor is only need for systems that have zone temperature controls
  8. Pair button: The pair button can be used to pair wireless remote controls (C400FOB & C410FOB) as well as wireless sensors CRFS and iZone WiFi bridges (COCB and CL5BK)
  9. AC unit connection: Connect the shielded, 2 core cable from the AC unit to the C225 here. This is a spring-loaded wire terminal see here for specifications



Central Processing Unit Specification



Model numbers

C225

Power supply

24VAC 50Hz

Casing material

Fire retardant ABS plastic

Power connection

iZone transformer CT24ACE

Operating Temperature

Up to 65oC

Communications protocols

Wired CAN Bus

Wireless 433Mhz (iZone proprietary protocol)

Number of zones

0 to 8 (RJ11 or RJ12 connectors)

O/A Dimensions

Height (Without Antenna)   32 mm

Height (With Antenna vertical) 124mm

Width    119 mm

Length  117 mm

Weight

200 g





Additional Information

Item Height No
Item Width No
Item Length No
Item Weight No
