iZone Open Connection WiFi Bridge

The COCB is a wireless or wired open connection bridge that connects the iZone air conditioning and Home Automation systems to the home WiFi to enable the control of iZone systems via a smart phone, tablet or voice activation via a 3rd party device.

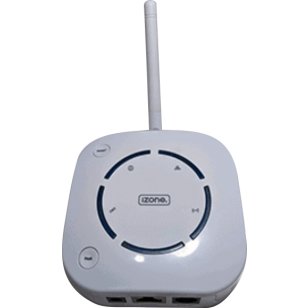

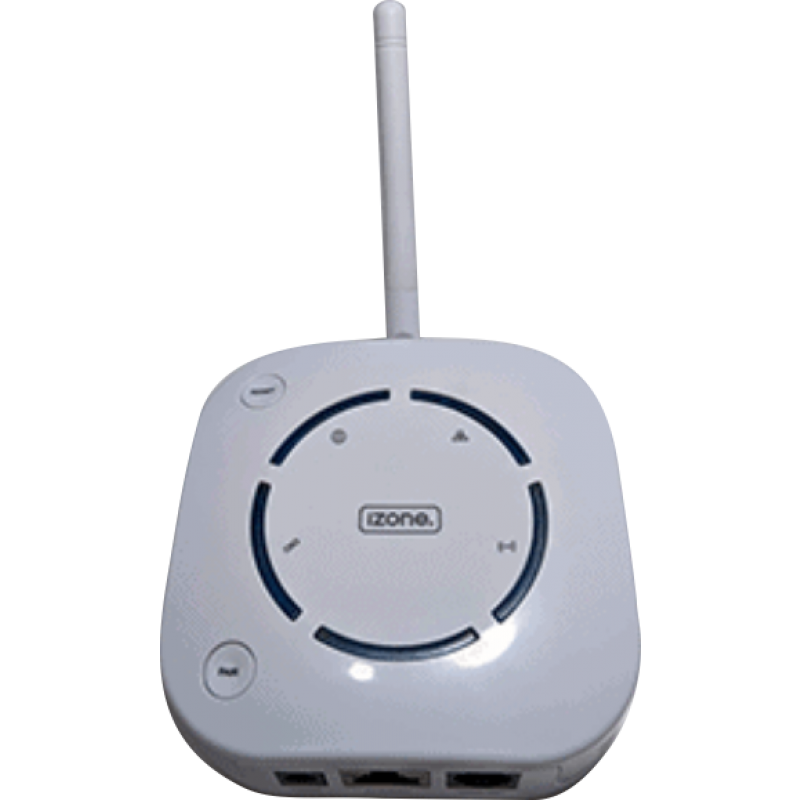

Diagram:

1. Antenna: RF 433MHz antenna. For wireless communication with C225 and wireless iZone devices
2. Reset button: To reset the COCB press this button.
3. iZone World Wide LED: This LED indicates that the bridge is communicating with the iZone World Wide Server
4. Pairing LED: This LED will flash when the COCB is in the process of pairing to the system
5. Pair button: Press this button to pair the COCB to the system
6. Wall mounting point on back: A hanging bracket is incorporated on the back of the COCB to enable the device to be hung from a single point on a wall or similar
7. Ethernet activity LED: This LED indicates the COCB is connected to a network and is communicating
8. Wireless LED: This LED indicates RF 433MHz wireless communication with wireless devices. If the COCB is hard wired to the C225 via the CGB2C35 cable it will indicate CAN communication with the C225.
9. Rubber feet for desk top mounting: 4 small rubber feet are installed for mounting on a desk similar
10. Power jack Port: The COCB power adaptor is connected here
11. Ethernet RJ45 Port: Connect a CAT5 cable from the home WiFi router (LAN) or network to this Ethernet port on the COCB
12. iZone Net Port: If a wired connection between the C225 module and this bridge is required, a special cable (CGB2C35) is used to connect the C225 module and the COCB bridge via this iZone Net Port
