More Views

iZone Smart Plug

Availability: In stock

$52.78

Quick Overview

CGPO
OR

Details

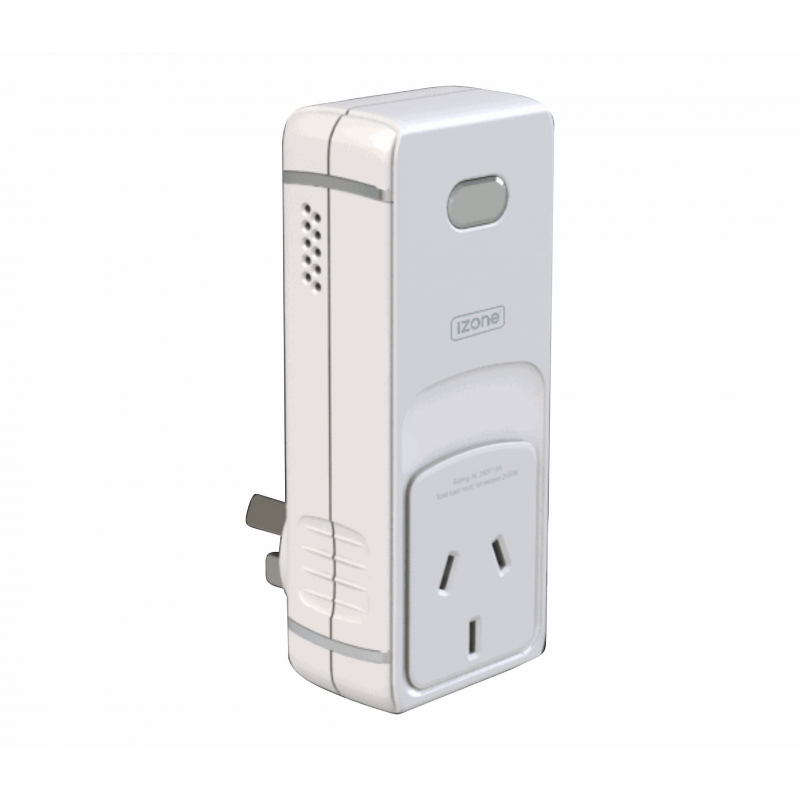

iZone Smart Plug

Transform a “dumb” appliance into a smart appliance. You can plug ordinary appliances you want to control into the iZone smart plug and use your smartphone, tablet or iZone touch screen to control them. Simple as that. You can also control lighting that is not part of the iZone smart network by plugging it into an iZone smart plug.



Works well with:

-          Bedroom Fan

-          Hair Iron

-          Kettle

-          Heater

-          Pool Pump

-          Computer

-          Office Fan

-          And anything else you could think of





Diagram:

  1. Smart plug: Smart plugs can be used for remote control of 240V devices powered from a standard AU general purpose outlet
  2. Australian plug: AU Plug

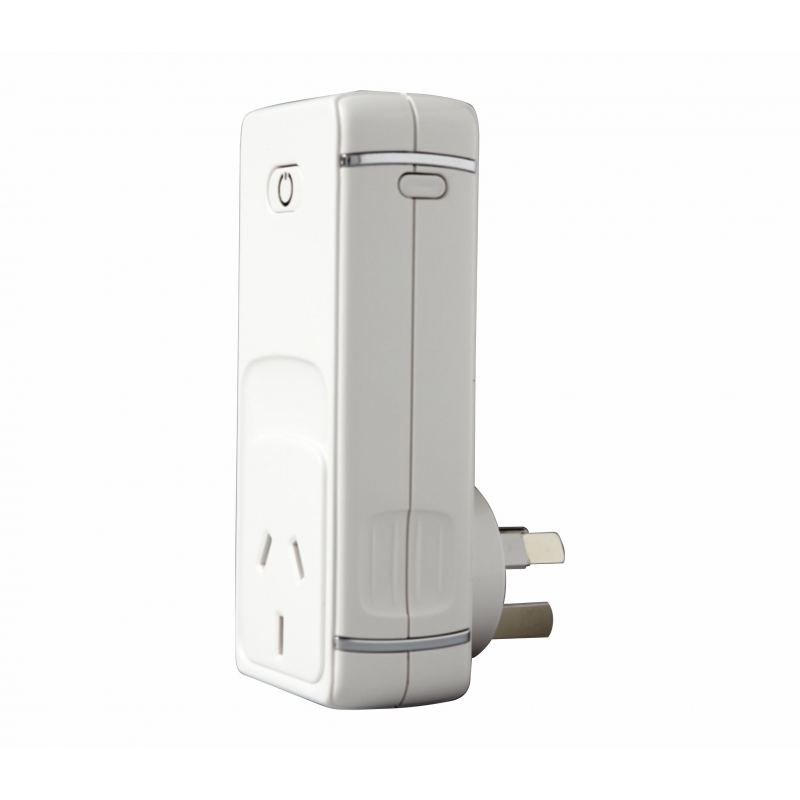

  3. Pair button: The pair button is located on the side of the iZone smart plug. Press and hold the pair button while pressing the pair button on the App or on the iZone screen. The LED will flash red rapidly to indicate it is paring to the system
  4. Manual On/Off button: The smart plug can be controlled manually from the on off button. When on the LED behind the button will be blue and when off it will be red.
  5. Plug voltage free relay (CVFR) here



Specifications

-          Model CGPO

-          240VAC 50Hz, 10 AMP Max Power Supply

-          433 Hz Control Frequency

-          Suitable for indoor use only

-          Australian GPO and Australian Plug



iZone Smart  Plug Specification

Model numbers

CGPO

Certification

AS/NZS 61058 ;  C Tick  N29007;

Power supply

Input: 220 - 240VAC 50Hz

Power consumption

Maximum  1.9 Watts switched on (no load connected)

Minimum 0.6 Watts switched off

Maximum connected load permitted

10 amps

Connection

Australian GPO and Australian Plug

Control frequency

433 MHz

Operating Temperature

-5oC to +40oC

Environment

Suitable for indoor use only

Requirements

An iZone bridge (COCB) is required to control a smart plug

Size & Weight

Height 107 mm

Width 44 mm

Depth 37 mm (Excludes prongs)

Weight 89g







iZone Smart  Plug Set up

Installation

a)Remove the smart plug from the packaging

b)Plug the  smart plug into the wall outlet (One at at time.)

c)Switch the power at the wall outlet on.

d)The on/off switch will flash red if it has never been paired.

Pairing

e)Pair the iZone smart plug to the iZone Bridge by pressing the pair button on the smart plug and on the screen simultaneously.



f)The on/off button will flash blue several times to indicate it is pairing.

Configure

g)Name your smart plug on the screen or app

h)Group your smart plug to other devices or switches

Use your smart plug







i)Plug the appliance to be controlled into the iZone smart plug.

j)Control your appliance via the touch screen , smart phone or tablet , or iZone wireless switch or the on / off button on the iZone smart plug.

k)Schedules, scenes, voice control, all ON / OFF , iSense control, alarm and holiday features can all be set up to control this smart plug
