Diagram:

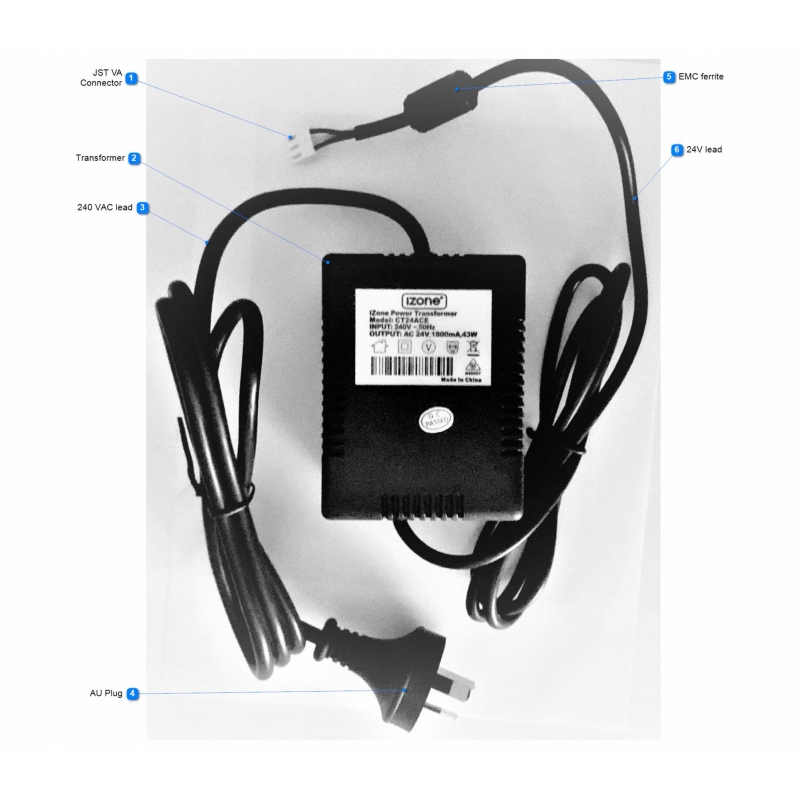

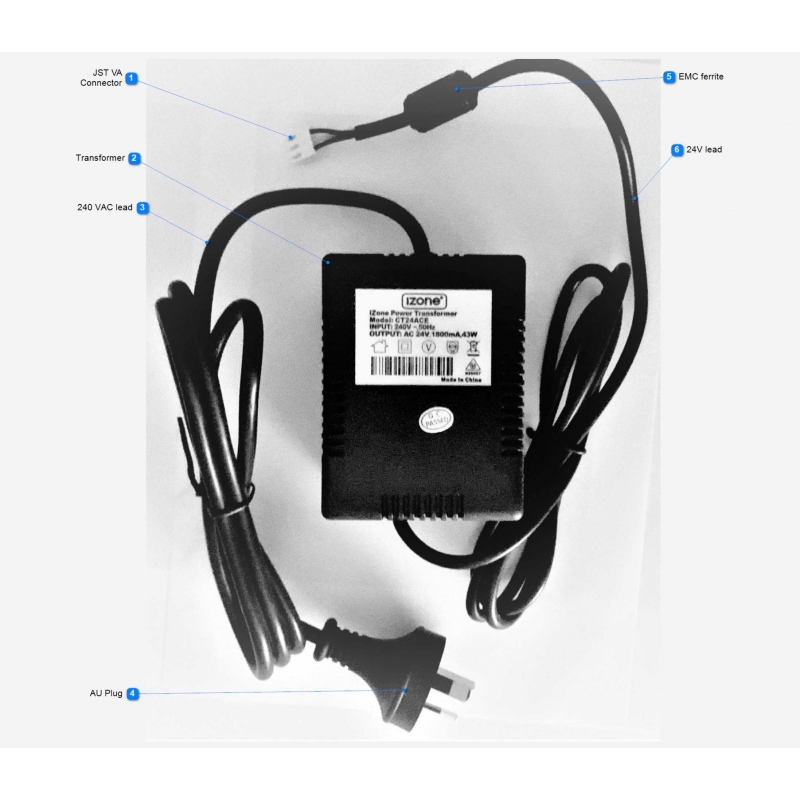

- JST VA Connector: The JST VA Connector is active, neutral and earth. The connector on the transformer is female and it connects into the male connector on the C225 module.
- Transformer: The transformer provides 24V power to the C225 module and is used to power all the zone dampers, connected modules and touch screens
- 240 VAC lead: The 240V lead consists of active, neutral and earth conductors
- AU Plug: Standard 3 Pin AU plug. The power supply to the transformer should be via an earthed AU GPO and should not be fed off the same circuit as the AC unit power supply
- EMC ferrite
- 24V lead: The 24V lead consists of active, neutral and earth conductors
|
iZone 24V Transformer Specification
|
|
|
Model numbers |
CT24ACE, CT24AC (CT24AC is not earthed) |
|
Input |
240V ~ 50Hz |
|
Output |
AC 24V, 1800mA, 43W (52 W Peak) |
|
Casing material |
Fire retardant ABS plastic |
|
Operating temperature |
Up to 65oC |
|
240V lead length |
1400 mm (Approx) |
|
24V lead length |
1400 mm (Approx) |
|
O/A Dimensions |
Height 65 mm Width 75 mm Length 99 mm |
|
Weight |
1285 g |
