iZone Wireless Roller Blind Module

Availability: In stock

$98.90

Quick Overview

CACRB
240V AC
OR

Details

iZone Roller Blind Module

The Roller blind module is hard wired to the mains power and uses wireless RF for the control communication. This module is only suitable for locating indoors however, it can control blinds which have a suitable rating that are located outdoors or in wet areas.



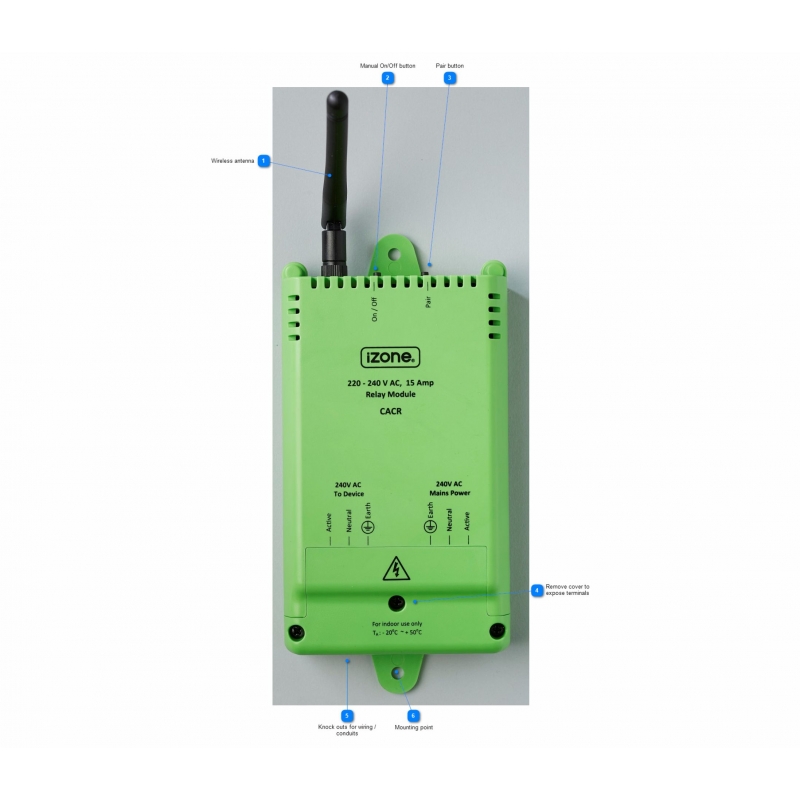

Diagram:

  1. Wireless antenna: The wireless antenna should be screwed in tight and after installation it should point up.
  2. Manual- Up / Down / Stop button: To test the Roller Blind module you can press this manual button to toggle through Up, Down and Stop functions
  3. Pair button: To pair the Roller blind module to the system ensure there is power to the module> Press the pair button on the  module > . At the same time press the pair button on the App or iZone touch screen.  >The blue LED inside the module (close to the pair button) will flash rapidly to indicate the module is pairing to the system.
  4. Remove cover to expose terminals: Remove the terminal cover to expose the wiring terminal. Wire in accordance with the wiring notation on printed on the top cover. There are also wiring restraint cable ties that should be used to restrain the wiring in place. This should only be done by and electrician.
  5. Mounting: There are two mounting points on the module to allow the module to be mounted to roof timbers.



iZone Roller blind Module Specification

Model numbers

CACRB

Certification

AS/NZS 61058 ;  C Tick  N29007;

Power supply

Input: 220 - 240VAC 50Hz

Power consumption

Maximum  2.35 Watts switched on (no load connected)

Minimum 1.05 Watts switched off

Maximum connected load permitted

5 Amp

Connection

Hard wired

Control frequency

433 MHz

Operating Temperature

-20oC to +50oC

Environment

Suitable for indoor use only

Requirements

An iZone bridge (COCB) is required to control an iZone Roller blind module

Size & Weight

Height: 150 mm (Excludes mounting lugs and antenna)

Width 85 mm

Depth 36 mm (Excludes Antenna)

Weight 220g

(Designed to fit through a standard 95mm diameter down light hole)

Compatibility

Must have 240V, 4 wire motors, with mechanical stops, and suitable for home automation.

See this link for motors which are know for compatibility.



iZone Roller blind Module Set up

Installation

a)Switch the power off at the switchboard

b)Remove the Roller blind module from the packaging

c)Cut the circuit to the device being controller and terminate the wiring as indicated on the casing.

d)If the roller blinds being controlled are capable of being wired in parallel you may connect multiple blinds to a single  roller blind module up to a maximum of 5 amps.

e)If the roller blinds being controlled are not capable of being wired in parallel you must connect one roller blind module to each blind. The blinds can still be controlled as a bank of blinds by grouping them in the iZone configuration menu.

f)Test the blind control and switching using the manual UP/Down/Stop button on the module.

Pairing

g)Pair the iZone Roller blind module to the iZone Bridge by pressing the pair button on the Roller blind module and on the screen simultaneously.



f)The blue LED adjacent to the pair button on the module will flash blue several times to indicate it is pairing.

Configure

g)Name your Roller blind module on the screen or app

h)Set the mechanical maximum and minimum stops on each blind (This is on the blind motor and not part of the iZone system)

i)Calibrate roller blind in the iZone roller blind set up.

j)Configure the roller blind position for all On / Off functions.

k)Group your roller blind to other devices or switches as required

Use your relay module







l)Control your appliance via the touch screen , smart phone or tablet , or iZone wireless switch or the on / off button on the Roller blind module.

m)Schedules, scenes, voice control, all ON / OFF , iSense control, alarm and holiday features can all be set up to control this Roller blind module





Compatible Roller Blind Motors

Single blinds ( Non parallel operation)

-          Alpha WSS40

-          ACMEDA Automate ML45

-          Motolux 802133000 (MT35-6-28-240/50)



Multiple blinds ( Parallel operation of multiple blinds from a single iZone module)

-          Becker motors – Model P5-30-E12 Motor

-          Motolux 802131000 (MT35P-6-28-240/50)





Roller Blind Motors - Important Please Read !



Please note there are many different blind motor brands, makes and models available, however only certain motors will work with the iZone Roller Blind Module. All roller blind motors used on an iZone roller blind module need to be 240V~50Hz  with a 4 wire connection and suitable for home automation control (Such as C-Bus).  All roller blind motors must be fitted with mechanical stops. Electronic stops will not work correctly.



If the roller blinds are to be run in parallel (more than one blind operated by a single iZone roller blind module) the motors used must be suitable for parallel configuration. If the motors are not suitable for parallel operation you will need to install one iZone roller blind module for each roller blind. You can still operate them as a single blind by grouping the iZone roller blind modules in the configuration menu.



Check with your roller blind supplier to ensure the motors you are using are correct. A list of compatible roller blind motors are listed here. This list is not comprehensive. If you find other models that are suitable please send iZone and email and we will be happy to add them to the appropriate section.

There are probably many more makes of blind motors that will work with the iZone module so please contact iZone directly if you successfully use a motor that is not listed above and we will add it to the appropriate section.
