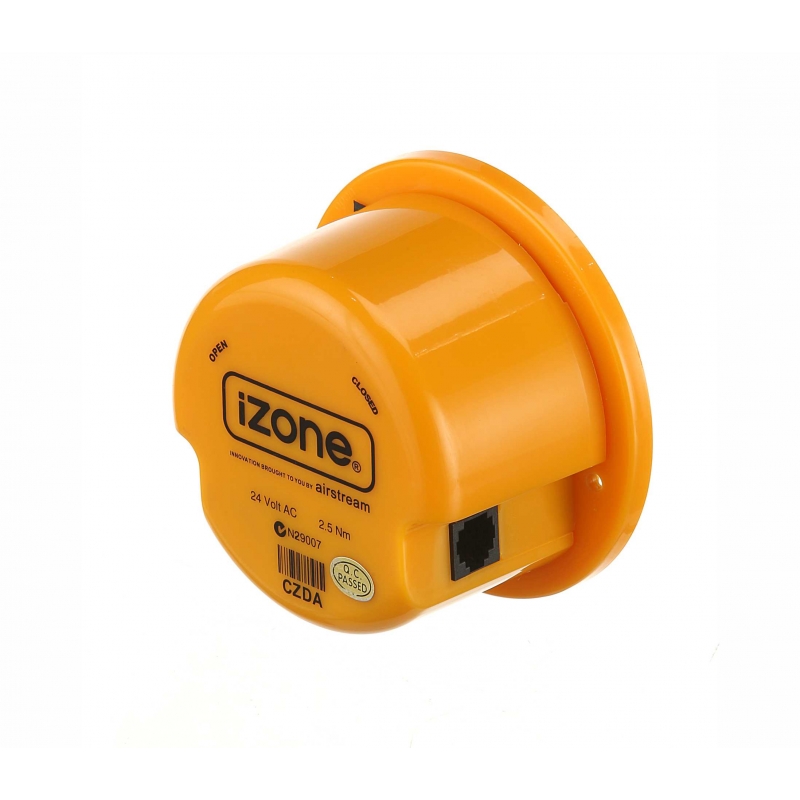

CZDA is the proprietary damper motor for iZone clip-in and barrel dampers
iZone damper motors are designed specifically for iZone control systems and iZone barrel dampers. The motor colour is yellow
Diagram:
- Screen printing
- RJ12 Connector: Earlier models may be fitted with an RJ11 connector. Pin-out for the connector is indicated below
- Shaft: The square shaft is designed for iZone dampers but will also fit Advantage Air Exact Air fittings
- Casing
- Blade position indicator: Indicates the position of the motors / blade between open and closed. The indicator must be free to move. If it is obstructed the motor will be damaged.
- Fixing screws: Two screws are used to fix the motor to the damper body.
|
iZone Damper Actuator Specification
|
|
|
Model numbers |
CZDA |
|
Power supply |
24VAC 50Hz |
|
Power connection |
|
|
Power consumption |
5 VA |
|
Operating Temperature |
Up to 65oC |
|
RPM |
1.04 |
|
Torque |
2.5Nm |
|
Drive rotation |
Clockwise and Counter clockwise |
|
Stop mechanism |
Independent micro switches for open and closed |
|
O/A Dimensions |
Height 57mm (Excludes shaft) Diameter 100mm |
|
Weight |
348g |
