The CDAK6 is a double adaptor to drive two damper motors to be driven from a single zone port on the C225 or CEXT modules

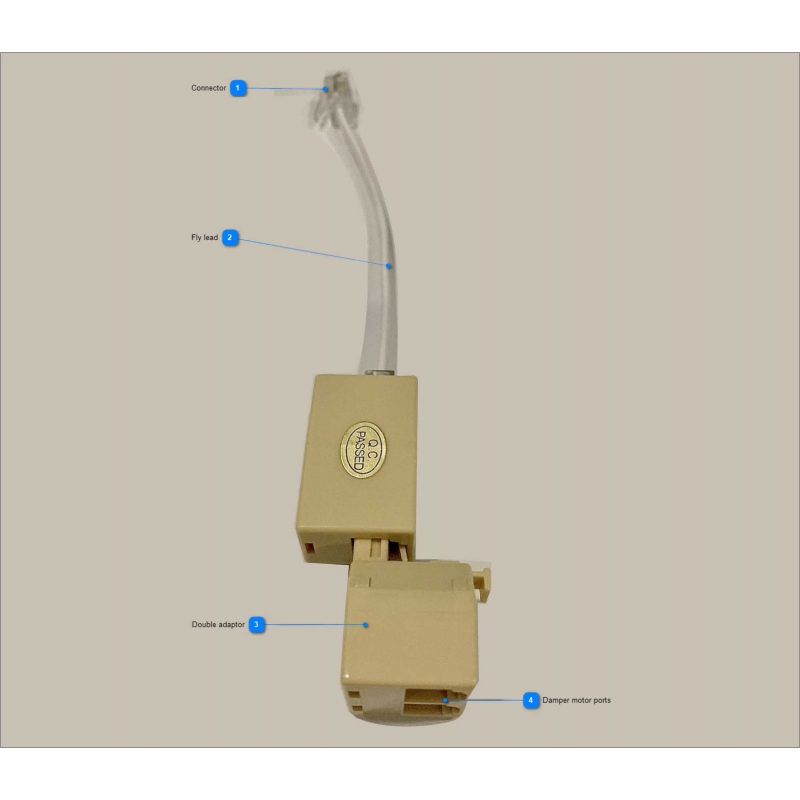

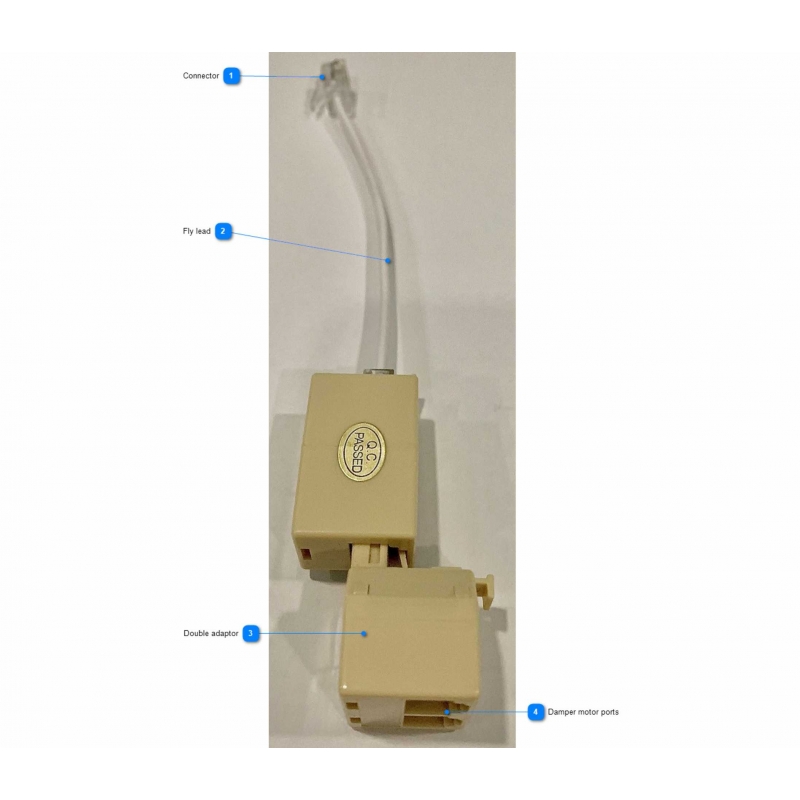

Diagram:
- Connector: This is an RJ11 or RJ12 jack for which connects into the C225 or CEXT damper ports
- Fly lead
- Double adaptor: This converts from 1 to 2 ports
- Damper motor ports: Connect damper cables into these ports. Ensure the same type is used as the damper port and C225 ports (RJ11 or RJ12)
|
Double Adaptor Kit Specifications |
|
|
Model numbers |
CDAK, CDAK6 |
|
Power supply |
From C225 (damper motor port) |
|
Casing material |
Fire retardant ABS plastic |
|
Operating Temperature |
Up to 65oC |
|
Suitable connectors |
CDAK - RJ11 CDAK6 - RJ12 or RJ11 |
|
O/A Dimensions (excludes fly lead) |
Height 38 mm Width 26 mm Length 64 mm |
|
Weight |
16 g |
